Gear Cutting Tools
Precision Tooling for Gear Manufacturing.
Radar Tools Group manufactures gear cutting tools for generating, shaping and finishing gears, splines, sprockets and special profiles. Standard and custom tooling is available for production and specialized gear manufacturing applications.
Request a QuoteGear Cutting Tool Range
Precision hobs, shaper cutters and finishing tools for a wide range of gear manufacturing applications.

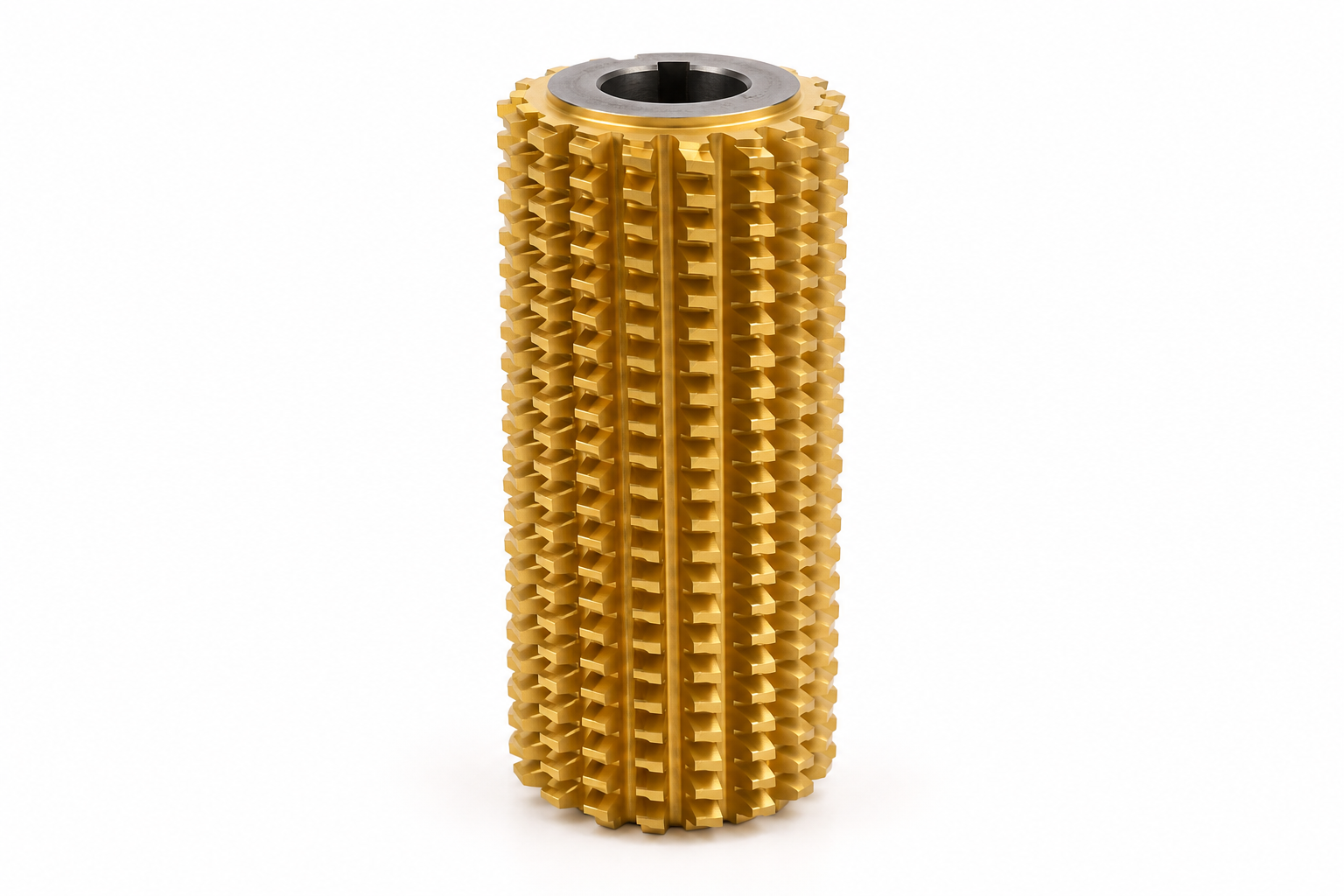

Involute Gear Hobs
Precision hobs for generating external involute gear profiles in standard and special configurations.

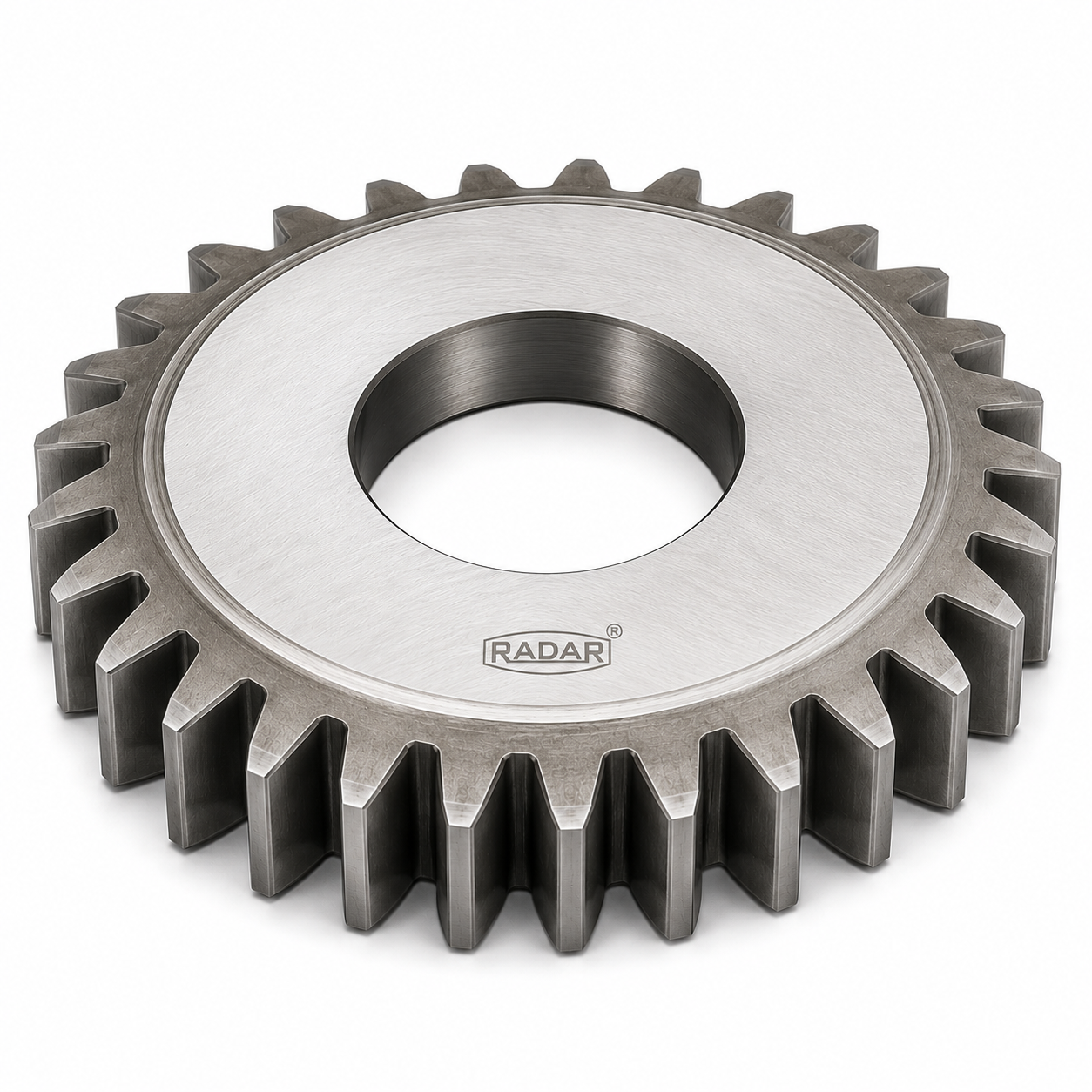

Disc Type Shaper Cutters
Disc-style gear shaping cutters for accurate production of external and applicable internal gear profiles.

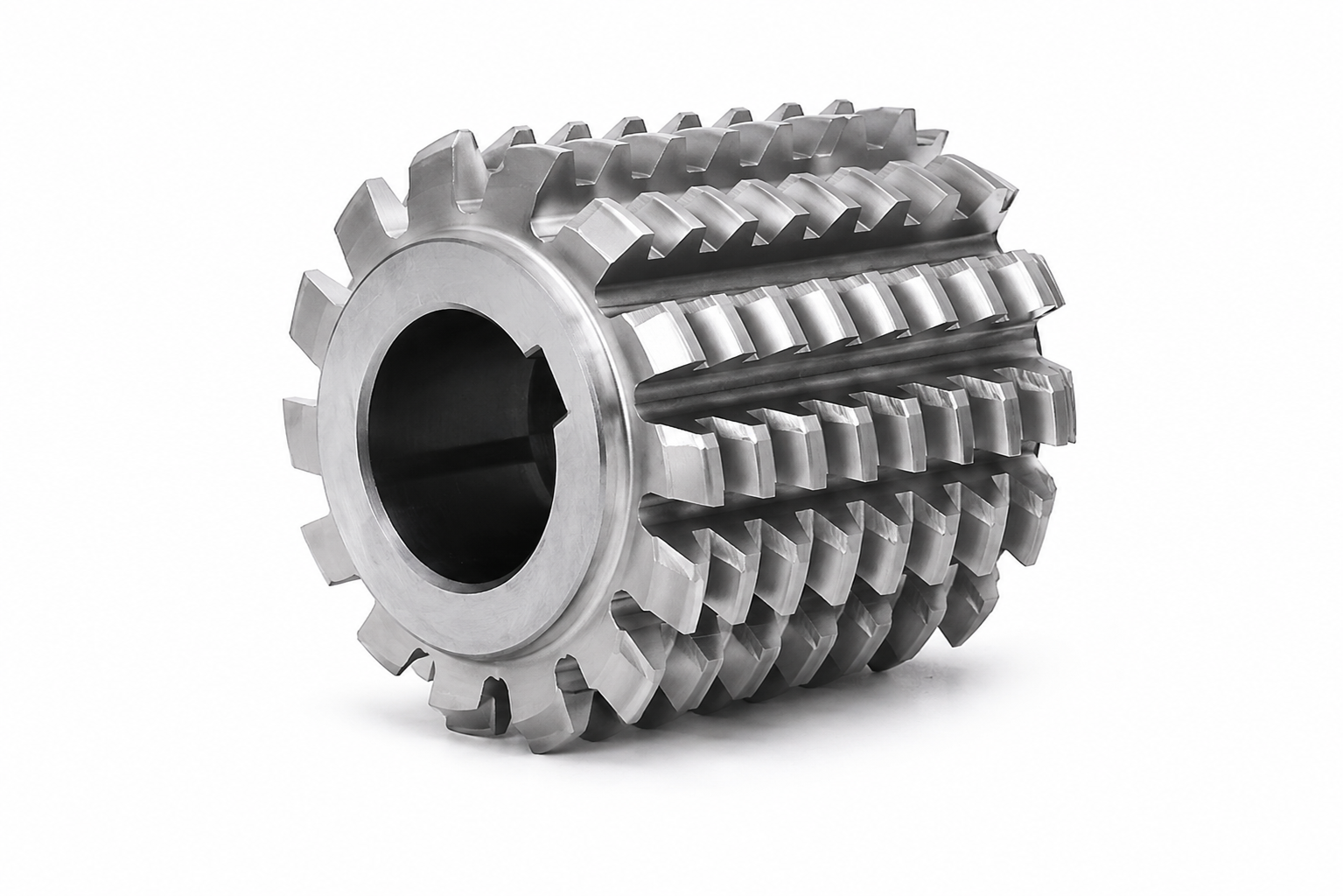

Spline Hobs
Precision hobbing tools for producing straight and involute spline profiles to application requirements.

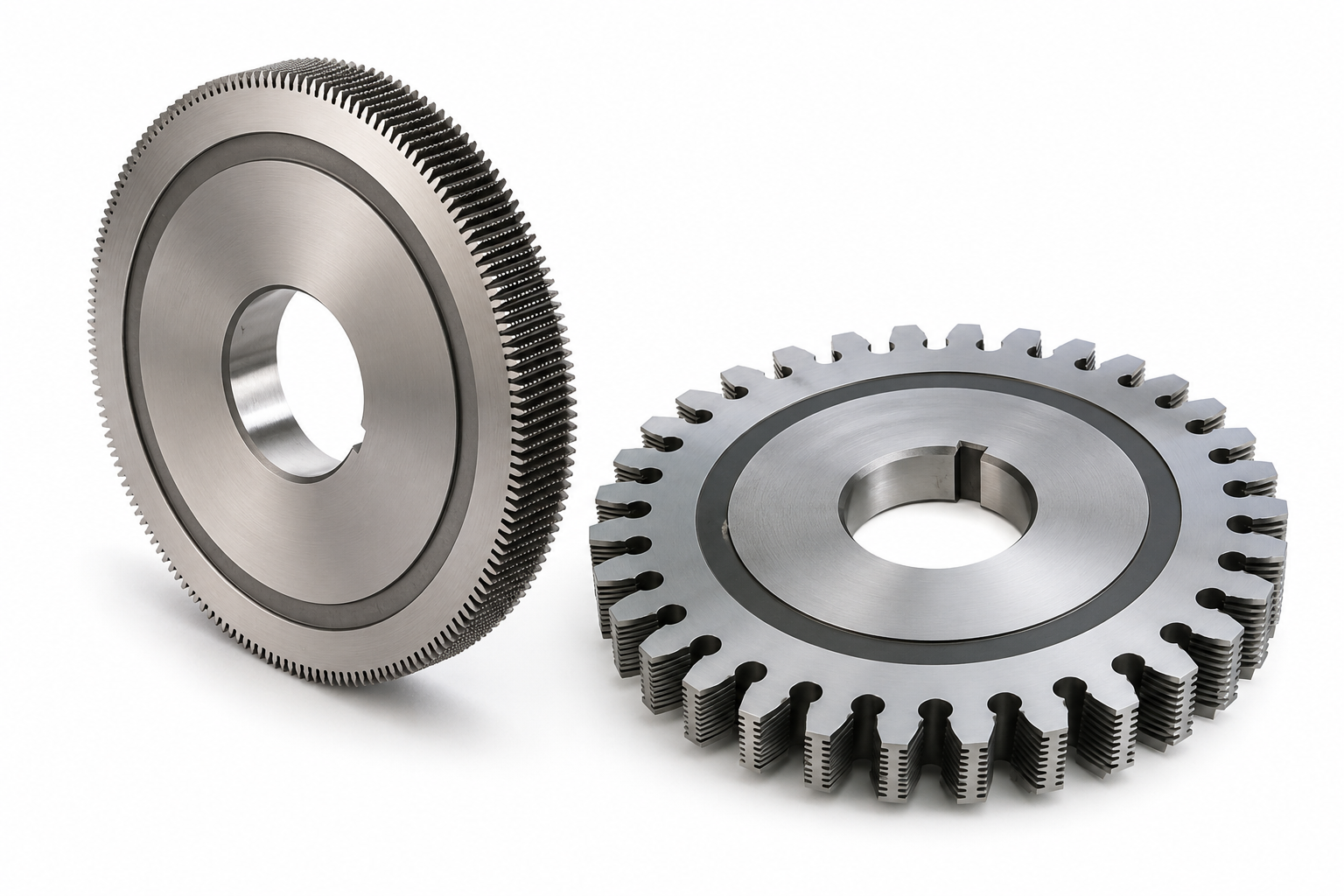

Gear Shaving Cutters
Finishing tools engineered to improve gear tooth accuracy, profile quality and surface finish.
Worm Gear / Worm Wheel Hobs
Precision hobs for generating worm-wheel tooth forms in standard and application-specific geometries.

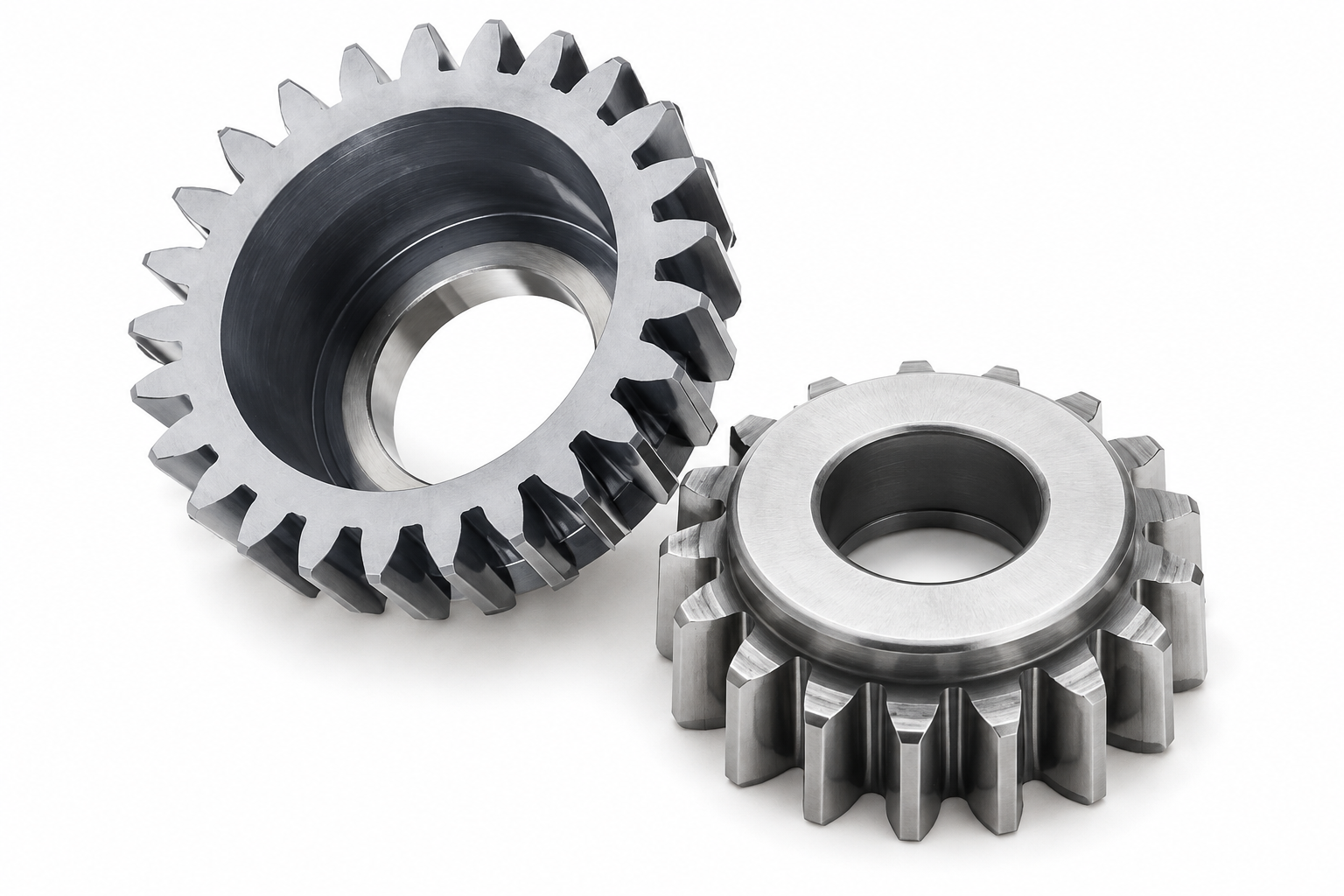

Hub Type Shaper Cutters
Hub-style gear shaping tools designed for rigid, accurate and repeatable gear production.
Sprocket Hobs
Specialized hobs for producing chain sprocket tooth profiles across industrial transmission applications.

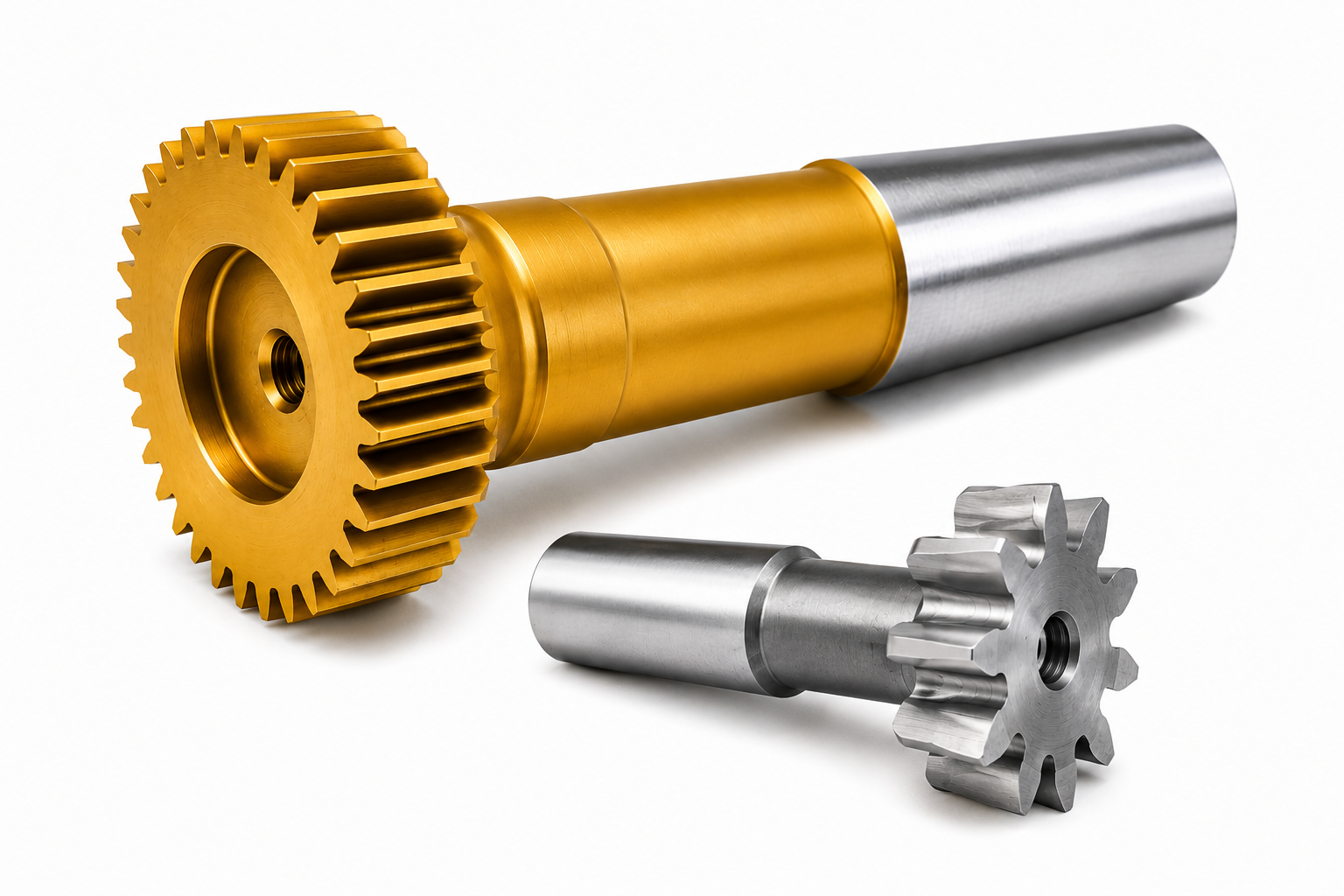

Shank Type Shaper Cutters
Shank-mounted gear shaping cutters for internal, external and restricted-clearance gear applications.
Technical Capabilities
Gear cutting tools can be engineered according to gear geometry, accuracy requirements and production application.
Gear Parameters
Module • Diametral Pitch • Pressure Angle • Helix Angle
Tool Construction
Bore Type • Shank Type • Disc Type • Hub Type
Profiles & Designs
Topping • Non-Topping • Semi-Topping • Full-Topping • Special Profiles
Accuracy & Standards
DIN Accuracy Classes • ANSI • JIS • BS options where applicable
Materials & Grades
Tool material is selected according to gear geometry, workpiece material, cutting conditions and production requirements.
Coatings
PVD coating options can be selected according to tool material, workpiece and cutting conditions.
Custom & Special Gear Cutting Tools
Radar Tools Group manufactures special gear cutting tools according to component drawings, gear specifications and production requirements. Tool geometry, material and coating can be selected for the application.
Send Your Gear Tool Requirement
Provide your gear specification or component drawing and our team can review the application and recommend a suitable gear cutting tool.
