Internal Broaches
High-precision internal broaches manufactured for automotive, aerospace, gear manufacturing and general engineering applications.
Radar manufactures a comprehensive range of precision Internal Broaches, including Involute Spline Broaches, Serration Broaches, Straight-Sided Spline Broaches, Interspaced Broaches, Polygon Broaches, Knock-Off Spline & Serration Broaches, Calibration Broaches, Helical Broaches, and customized Internal Broaches manufactured as per customer drawings.
Involute Spline Broaches
Technical Specifications
| Type | Push & Pull |
|---|---|
| Standards | ANSI, DIN 5480, JIS |
| Major Diameter | 10–200 mm |
| Module | 0.5–8 |
| Diametral Pitch | 8–40 DP |
| Pressure Angle | 14.5°, 20°, 25°, 30°, 37.5°, 45° or as required |
| Number of Splines | As per drawing |
| Job Length | As required |
| Maximum Broach Length | Up to 2500 mm |

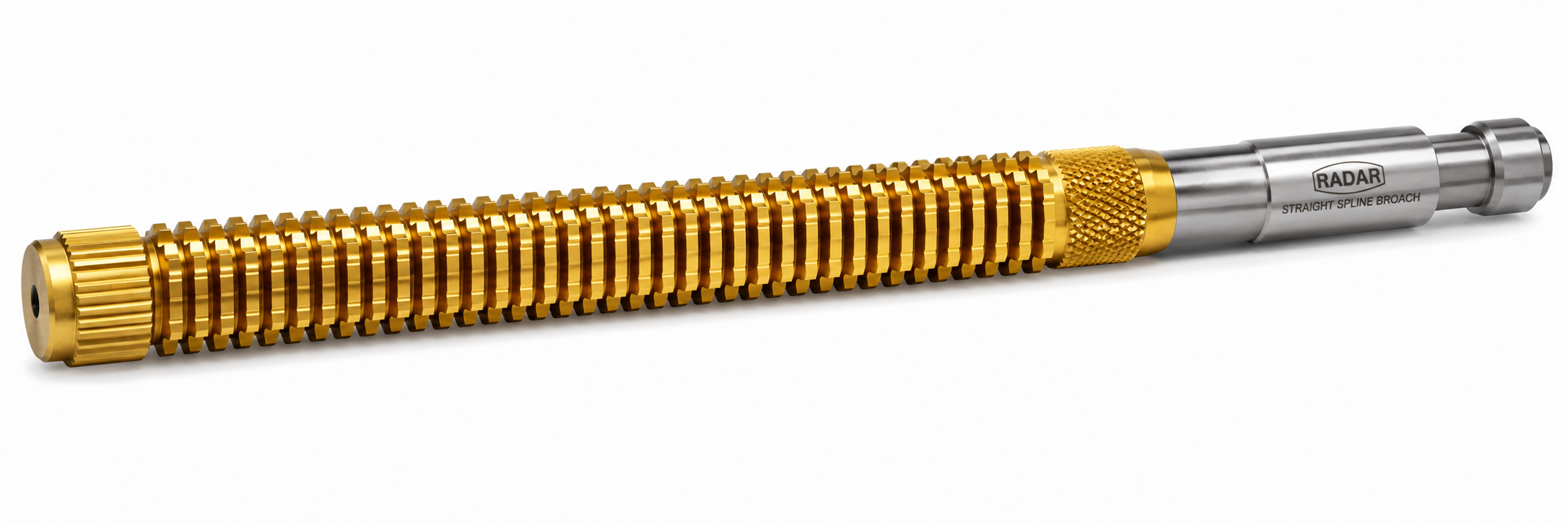

Straight-Sided Spline Broaches
Technical Specifications
| Major Diameter | 10–250 mm |
|---|---|
| Number of Splines | As per drawing |
| Job Length | As required |
| Maximum Broach Length | Up to 2500 mm |

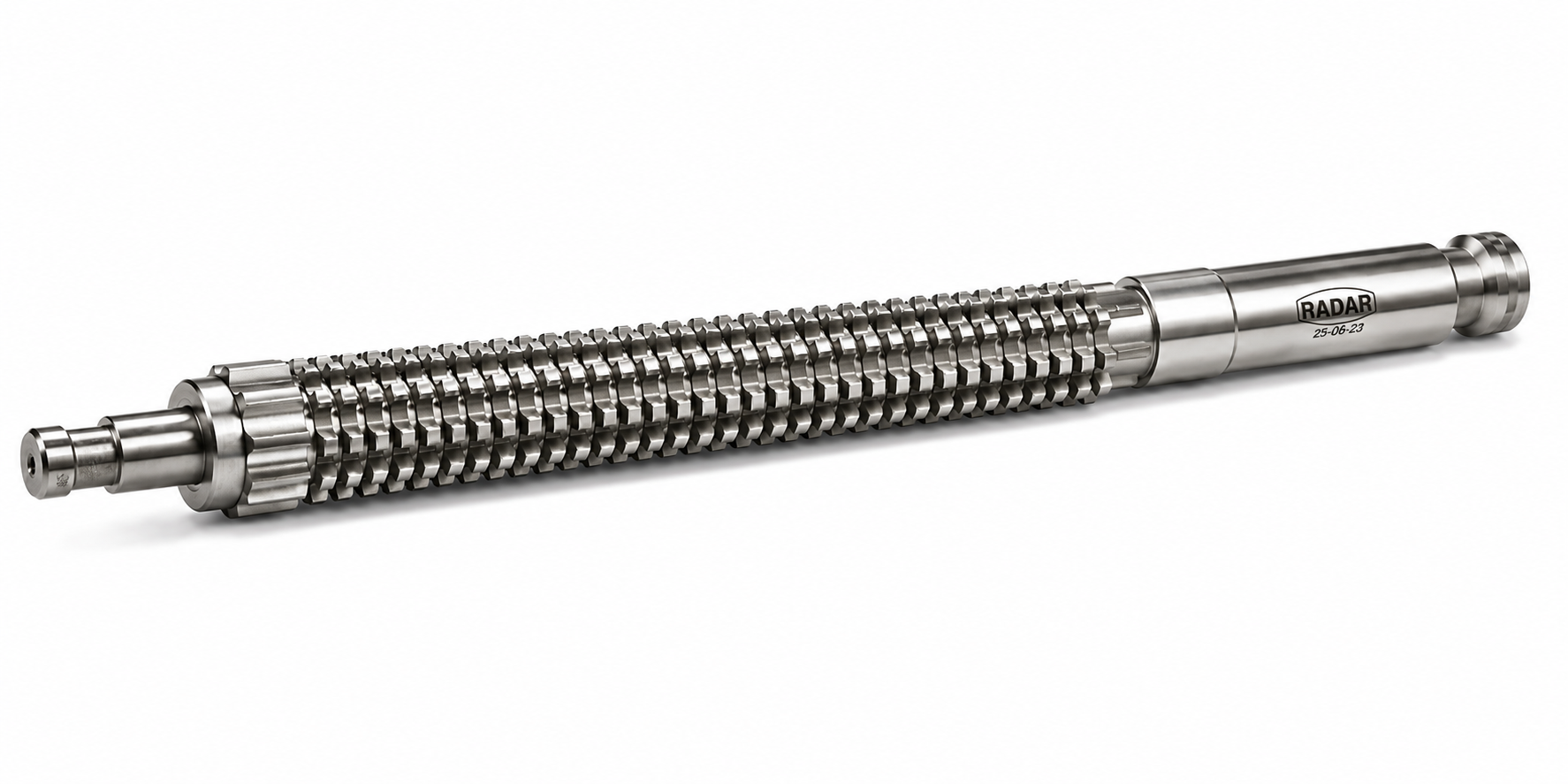

Serration Broaches
Technical Specifications
| Type | Push & Pull |
|---|---|
| Standards | ZGN, DBN, DIN 5481, SMMT 111, HES |
| Major Diameter | 8–150 mm |
| Number of Serrations | As per drawing |
| Job Length | As required |
| Maximum Broach Length | Up to 2000 mm |

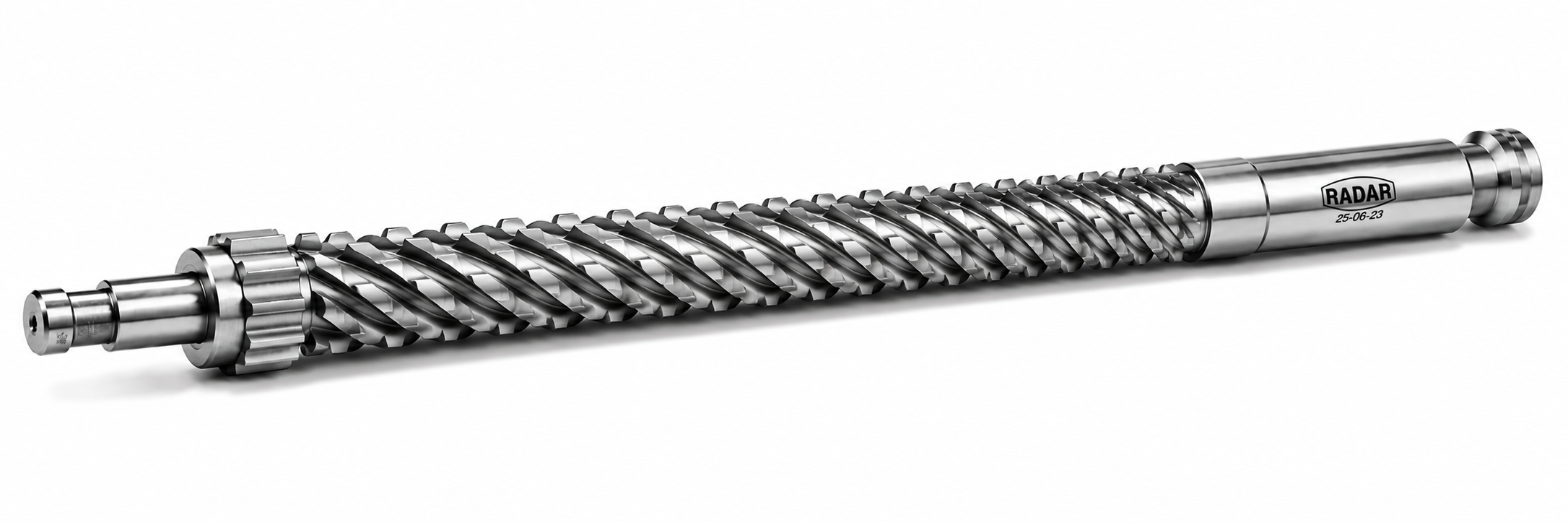

Helical Broaches
Technical Specifications
| Diameter | Up to 250 mm |
|---|---|
| Maximum Broach Length | Up to 2000 mm |
| Manufacturing | Customized according to customer drawing |
Need a Customized Internal Broach?
Share your component drawing, material, dimensions and production requirements with our engineering team for technical review and quotation.
